与SparkSql集成

使用spark-sql环境进行操作，基于外置Hive保存数据到Hadoop上。

1. 环境准备

1.1 下载iceberg

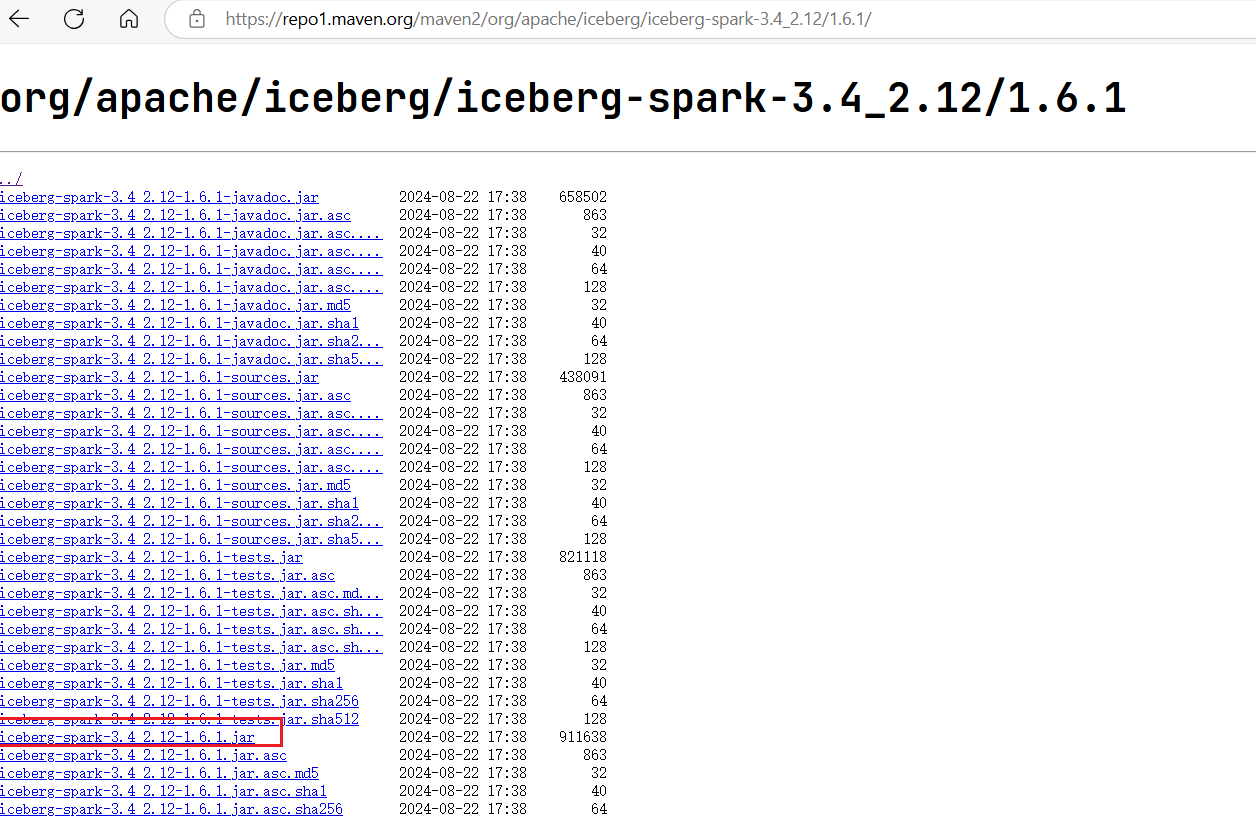

访问https://repo1.maven.org/maven2/org/apache/iceberg/, 下载对应Spark版本的iceberg运行jar包：
Alt text

提示

目前最新版本为1.8.0，但是iceberg从1.7.0开始不再支持jdk1.8, iceberg1.6.1支持jdk1.8

1.2 拷贝iceberg的jar包到Spark的jars目录

cp /opt/software/iceberg-spark-runtime-3.4_2.12-1.6.1.jar /opt/module/spark-3.4.2/jars

1.3 启动环境依赖

启动Hadoop集群和Hive的metastore服务

2. 配置SparkSql

Spark中支持两种Catalog的设置：hive和hadoop，Hive Catalog就是Iceberg表存储使用Hive默认的数据路径，Hadoop Catalog需要指定Iceberg格式表存储路径。默认使用Hive Catalog。

2.1 配置Hive Catalog

编辑spark-defaults.conf文件，添加额外自定义的Hive Catalog。

[jack@hadoop103 spark-3.4.2]$ cd conf/
[jack@hadoop103 conf]$ cp spark-defaults.conf.template spark-defaults.conf
## 配置如下内容
spark.sql.catalog.hive_prod = org.apache.iceberg.spark.SparkCatalog
spark.sql.catalog.hive_prod.type = hive
spark.sql.catalog.hive_prod.uri = thrift://hadoop103:9083

2.2 配置Hadoop Catalog

编辑 spark-defaults.conf文件

[jack@hadoop103 conf]$ vim spark-defaults.conf
## 配置如下内容
spark.sql.catalog.hadoop_prod = org.apache.iceberg.spark.SparkCatalog
spark.sql.catalog.hadoop_prod.type = hadoop
spark.sql.catalog.hadoop_prod.warehouse = hdfs://hadoop102:8020/warehouse/spark-iceberg

3. 启动SparkSql

执行thriftserver的启动脚本：

./sbin/start-thriftserver.sh

连接sparksql

./bin/beeline -u jdbc:hive2://hadoop103:10000 -n jack

4. 创建表

建表支持以下语法特性：

PARTITIONED BY (partition-expressions) ：配置分区
LOCATION '(fully-qualified-uri)' ：指定表路径
COMMENT 'table documentation' ：配置表备注
TBLPROPERTIES ('key'='value', ...) ：配置表属性

对Iceberg表的每次更改都会生成一个新的元数据文件(json文件)以提供原子性。默认情况下，旧元数据文件作为历史文件保存不会删除。

4.1 创建内部表

sql

--
CREATE TABLE ice_spark_sample1 (
    id bigint COMMENT 'unique id',
    data string)
USING iceberg
location '/spark/warehouse/ice_spark_sample1';

查看ice_spark_sample1表信息：

0: jdbc:hive2://hadoop103:10000> show create table ice_spark_sample1;
+----------------------------------------------------+
|                   createtab_stmt                   |
+----------------------------------------------------+
| CREATE TABLE hive_prod.default.ice_spark_sample1 (
  id BIGINT COMMENT 'unique id',
  data STRING)
USING iceberg
LOCATION 'hdfs://hadoop102:8020/spark/warehouse/ice_spark_sample1'
TBLPROPERTIES (
  'current-snapshot-id' = 'none',
  'format' = 'iceberg/parquet',
  'format-version' = '2',
  'write.parquet.compression-codec' = 'zstd')
 |
+----------------------------------------------------+
1 row selected (0.38 seconds)

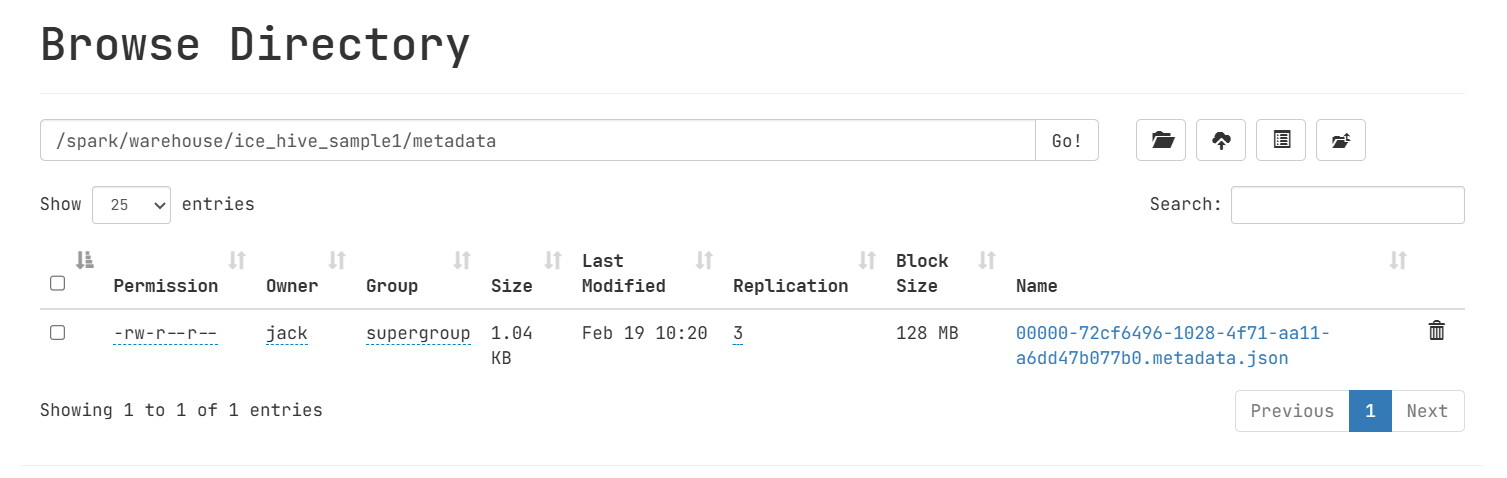

查看HDFS上面记录的元数据json文件信息：
Alt text

4.2 创建外部表

sql

CREATE EXTERNAL TABLE ice_spark_sample2 (
    id bigint COMMENT 'unique id',
    data string)
USING iceberg
location '/spark/warehouse/ice_spark_sample2';

查看ice_spark_sample2表信息：

0: jdbc:hive2://hadoop103:10000> desc formatted ice_spark_sample2;
+-------------------------------+----------------------------------------------------+------------+
|           col_name            |                     data_type                      |  comment   |
+-------------------------------+----------------------------------------------------+------------+
| id                            | bigint                                             | unique id  |
| data                          | string                                             | NULL       |
|                               |                                                    |            |
| # Metadata Columns            |                                                    |            |
| _spec_id                      | int                                                |            |
| _partition                    | struct<>                                           |            |
| _file                         | string                                             |            |
| _pos                          | bigint                                             |            |
| _deleted                      | boolean                                            |            |
|                               |                                                    |            |
| # Detailed Table Information  |                                                    |            |
| Name                          | hive_prod.default.ice_spark_sample2                 |            |
| Type                          | EXTERNAL                                           |            |
| Location                      | hdfs://hadoop102:8020/spark/warehouse/ice_spark_sample2 |            |
| Provider                      | iceberg                                            |            |
| Owner                         | jack                                               |            |
| Table Properties              | [current-snapshot-id=none,format=iceberg/parquet,format-version=2,write.parquet.compression-codec=zstd] |            |
+-------------------------------+----------------------------------------------------+------------+
17 rows selected (0.329 seconds)

4.3 创建分区表

sql

CREATE external TABLE ice_spark_sample3 (
    id bigint,
    data string,
    category string)
USING iceberg
PARTITIONED BY (category)
location '/spark/warehouse/ice_spark_sample3';
insert into ice_spark_sample3 values (1, 'jack', '1'), (2, 'tuanzi', '2'), (3, 'yuanyuan', '1');

查看建表信息：

0: jdbc:hive2://hadoop103:10000> show create table ice_spark_sample3;
+----------------------------------------------------+
|                   createtab_stmt                   |
+----------------------------------------------------+
| CREATE TABLE hive_prod.default.ice_spark_sample3 (
  id BIGINT,
  data STRING,
  category STRING)
USING iceberg
PARTITIONED BY (category)
LOCATION 'hdfs://hadoop102:8020/spark/warehouse/ice_spark_sample3'
TBLPROPERTIES (
  'current-snapshot-id' = '3117539524054604329',
  'format' = 'iceberg/parquet',
  'format-version' = '2',
  'write.parquet.compression-codec' = 'zstd')
 |
+----------------------------------------------------+

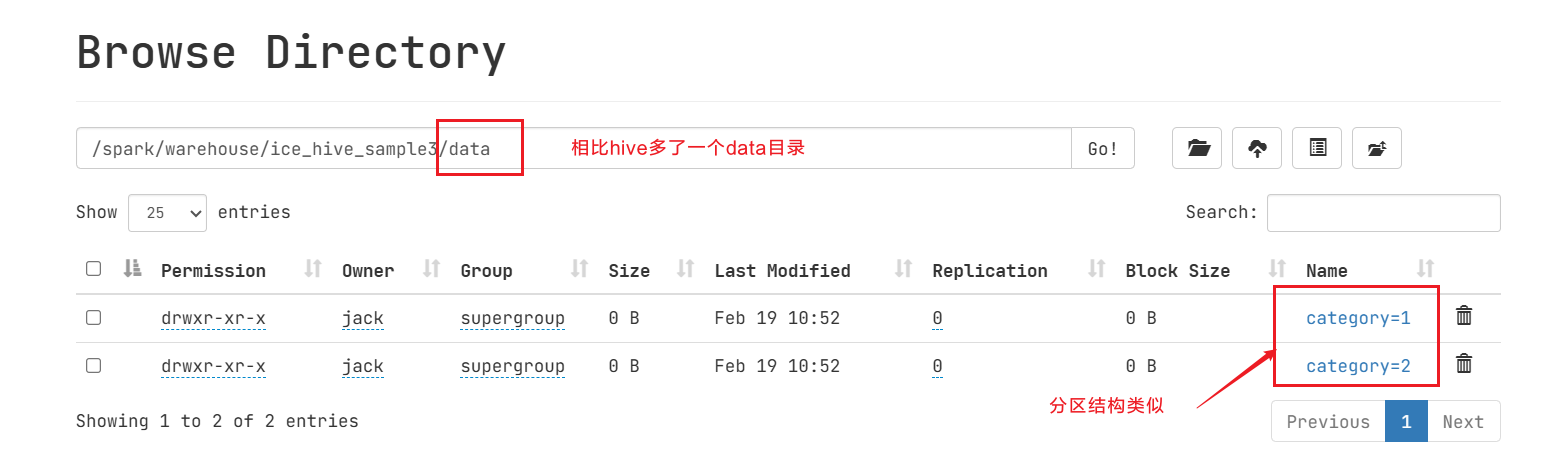

查看HDFS分区信息：
Alt text

4.4 创建隐藏分区表

所谓隐藏分区表就是里面的分区是根据字段计算而出，不是按照某字段的值进行分区。

sql

CREATE external TABLE ice_spark_sample4 (
    id bigint,
    data string,
    category string,
    ts timestamp)
USING iceberg
PARTITIONED BY (bucket(16, id), days(ts), category)
location '/spark/warehouse/ice_spark_sample4';

支持的转换函数有:

years(ts):按年划分
months(ts):按月划分
days(ts)或date(ts):等效于dateint分区
hours(ts)或date_hour(ts):等效于dateint和hour分区
bucket(N, col):按哈希值划分mod N个桶
truncate(L, col):按截断为L的值划分

查看表字段信息：

0: jdbc:hive2://hadoop103:10000> desc ice_spark_sample4;
+-----------------+-----------------+----------+
|    col_name     |    data_type    | comment  |
+-----------------+-----------------+----------+
| id              | bigint          | NULL     |
| data            | string          | NULL     |
| category        | string          | NULL     |
| ts              | timestamp       | NULL     |
|                 |                 |          |
| # Partitioning  |                 |          |
| Part 0          | bucket(16, id)  |          |
| Part 1          | days(ts)        |          |
| Part 2          | category        |          |
+-----------------+-----------------+----------+

4.5 CTAS建表

0: jdbc:hive2://hadoop103:10000> CREATE external TABLE ice_spark_sample5
. . . . . . . . . . . . . . . .> USING iceberg
. . . . . . . . . . . . . . . .> location '/spark/warehouse/ice_spark_sample5'
. . . . . . . . . . . . . . . .> AS SELECT * from ice_spark_sample3;
+---------+
| Result  |
+---------+
+---------+
No rows selected (2.313 seconds)
0: jdbc:hive2://hadoop103:10000> select * from ice_spark_sample5;
+-----+-----------+-----------+
| id  |   data    | category  |
+-----+-----------+-----------+
| 1   | jack      | 1         |
| 3   | yuanyuan  | 1         |
| 2   | tuanzi    | 2         |
+-----+-----------+-----------+
3 rows selected (0.366 seconds)

查看表结构，可以发现CTAS建表方式会丢失分区信息：

0: jdbc:hive2://hadoop103:10000> desc ice_spark_sample5;
+-----------+------------+----------+
| col_name  | data_type  | comment  |
+-----------+------------+----------+
| id        | bigint     | NULL     |
| data      | string     | NULL     |
| category  | string     | NULL     |
+-----------+------------+----------+
3 rows selected (1.578 seconds)

不指定分区就是无分区，需要重新指定分区、表属性：

sql

CREATE external TABLE ice_spark_sample6
USING iceberg
PARTITIONED BY (bucket(8, id), hours(ts), category)
TBLPROPERTIES ('key'='value')
location '/spark/warehouse/ice_spark_sample6'
AS SELECT * from ice_spark_sample4;

4.6 使用RTAS建表

sql

-- 若表不存在会报错，不能替换
REPLACE TABLE ice_spark_sample5
USING iceberg
PARTITIONED BY (category)
location '/spark/warehouse/ice_spark_sample5'
AS SELECT * from ice_spark_sample3;

-- 没有表就创建，有就替换方式建表
create or REPLACE TABLE ice_spark_sample8
USING iceberg
PARTITIONED BY (category)
TBLPROPERTIES ('key'='value')
AS SELECT * from ice_hive_sample3;

查看表ice_spark_sample5，发现已经变成了分区表：

0: jdbc:hive2://hadoop103:10000> desc formatted ice_spark_sample5;
+-------------------------------+----------------------------------------------------+----------+
|           col_name            |                     data_type                      | comment  |
+-------------------------------+----------------------------------------------------+----------+
| id                            | bigint                                             | NULL     |
| data                          | string                                             | NULL     |
| category                      | string                                             | NULL     |
| # Partition Information       |                                                    |          |
| # col_name                    | data_type                                          | comment  |
| category                      | string                                             | NULL     |
|                               |                                                    |          |
| # Metadata Columns            |                                                    |          |
| _spec_id                      | int                                                |          |
| _partition                    | struct<category:string>                            |          |
| _file                         | string                                             |          |
| _pos                          | bigint                                             |          |
| _deleted                      | boolean                                            |          |
|                               |                                                    |          |
| # Detailed Table Information  |                                                    |          |
| Name                          | hive_prod.default.ice_spark_sample5                |          |
| Type                          | EXTERNAL                                           |          |
| Location                      | hdfs://hadoop102:8020/spark/warehouse/ice_spark_sample5 |          |
| Provider                      | iceberg                                            |          |
| Owner                         | jack                                               |          |
| Table Properties              | [current-snapshot-id=8445519115344500338,format=iceberg/parquet,format-version=2,write.parquet.compression-codec=zstd] |          |
+-------------------------------+----------------------------------------------------+----------+
21 rows selected (0.39 seconds)

5. 修改表

5.1 修改表名

sql

ALTER TABLE ice_spark_sample1 RENAME TO ice_spark_sample11;

5.2 修改表属性

sql

ALTER TABLE ice_spark_sample11 SET TBLPROPERTIES (
    'read.split.target-size'='268435456'
);
-- 删除表属性
ALTER TABLE ice_spark_sample11 UNSET TBLPROPERTIES ('read.split.target-size')

5.3 添加字段

sql

ALTER TABLE ice_spark_sample11
ADD COLUMNS (
    new_column int comment 'new_column docs'
);

查询表数据：

0: jdbc:hive2://hadoop103:10000> select * from ice_spark_sample1;
+-----+-------+-------------+
| id  | data  | new_column  |
+-----+-------+-------------+
| 1   | jack  | NULL        |
+-----+-------+-------------+
1 row selected (0.3 seconds)

5.4 修改字段

iceberg允许修改字段类型，但要求修改的类型范围更大

sql

 alter table ice_spark_sample1 alter column new_column type bigint;

查看表字段信息：

0: jdbc:hive2://hadoop103:10000> desc ice_spark_sample1;
+-------------+------------+------------------+
|  col_name   | data_type  |     comment      |
+-------------+------------+------------------+
| id          | bigint     | unique id        |
| data        | string     | NULL             |
| new_column  | bigint     | new_column docs  |
+-------------+------------+------------------+
3 rows selected (0.326 seconds)

5.5 删除字段

ALTER TABLE ice_spark_sample1 DROP COLUMN new_column;

查看表字段信息：

0: jdbc:hive2://hadoop103:10000> desc ice_spark_sample1;
+-----------+------------+------------+
| col_name  | data_type  |  comment   |
+-----------+------------+------------+
| id        | bigint     | unique id  |
| data      | string     | NULL       |
+-----------+------------+------------+
2 rows selected (0.045 seconds)

5.6 添加分区

Spark支持额外添加新的分区，需要提前配置：

vim spark-default.conf
## 添加如下内容
spark.sql.extensions = org.apache.iceberg.spark.extensions.IcebergSparkSessionExtensions

重启ThriftServer后，使用beeline再次连接。将ice_spark_sample1添加分区, 由普通表变成分区表：

sql

ALTER TABLE ice_spark_sample1 ADD PARTITION FIELD bucket(16, id);

查看ice_spark_sample1表信息：

0: jdbc:hive2://hadoop103:10000> desc ice_spark_sample1;
+-----------------+-----------------+------------+
|    col_name     |    data_type    |  comment   |
+-----------------+-----------------+------------+
| id              | bigint          | unique id  |
| data            | string          | NULL       |
|                 |                 |            |
| # Partitioning  |                 |            |
| Part 0          | bucket(16, id)  |            |
+-----------------+-----------------+------------+

5.7 删除分区

同上需要Spark配置参数项spark.sql.extensions才能支持:

sql

ALTER TABLE ice_spark_sample1 DROP PARTITION FIELD bucket(16, id);

删除分区字段是元数据操作，不会改变任何现有的表数据。新数据将被写入新的分区，但现有数据将保留在旧的分区布局中。当分区发生变化时，动态分区覆盖行为也会发生变化。例如，如果按天划分分区，而改为按小时划分分区，那么将覆盖每小时划分的分区，而不再覆盖按天划分的分区。
删除分区字段时要小心，可能导致元数据查询失败或产生不同的结果。

5.8 并行分区写入

sql

ALTER TABLE hadoop_prod.default.sample1 WRITE DISTRIBUTED BY PARTITION;

ALTER TABLE hadoop_prod.default.sample1 WRITE DISTRIBUTED BY PARTITION LOCALLY ORDERED BY category, id

6. 删除表

6.1 删除HadoopCatalog表

对于HadoopCatalog而言，运行DROP TABLE将从catalog中删除表并删除表内容。

sql

CREATE EXTERNAL TABLE hadoop_prod.default.sample (
    id bigint COMMENT 'unique id',
    data string)
USING iceberg
location '/warehouse/spark-iceberg/default/sample';

INSERT INTO hadoop_prod.default.sample values(1,'a');

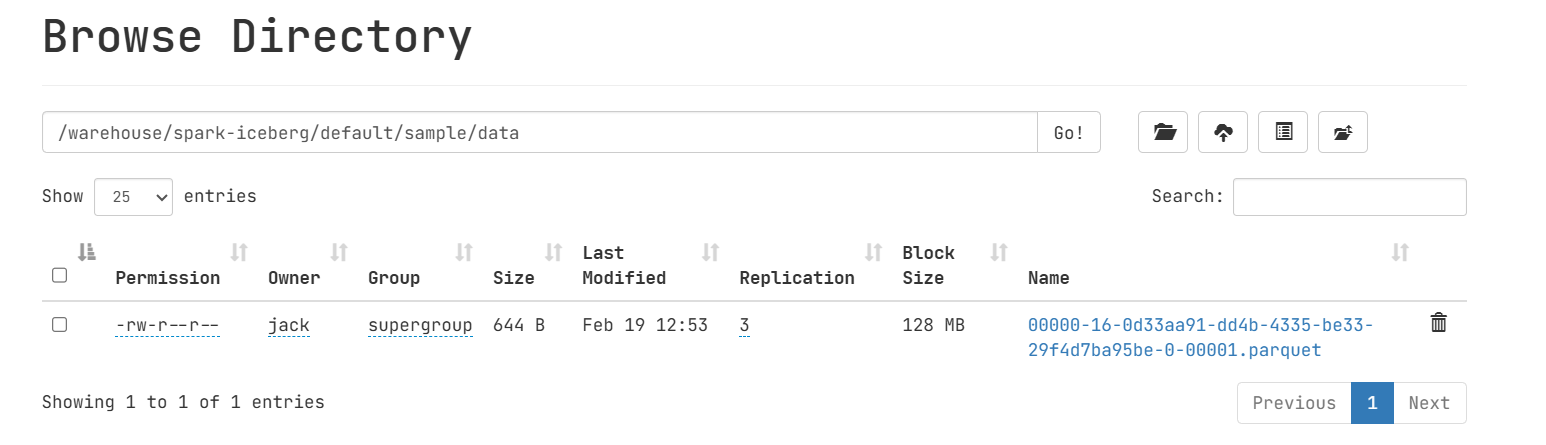

Alt text 执行表删除：

sql

DROP TABLE hadoop_prod.default.sample;

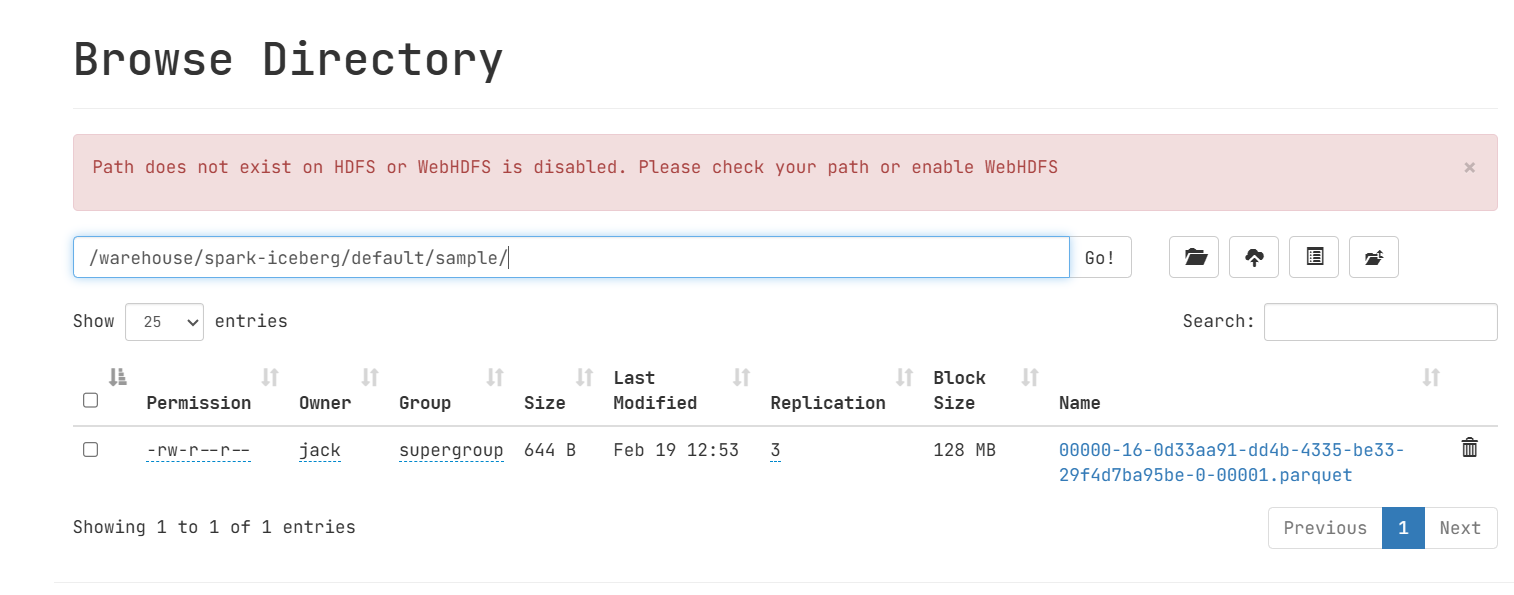

删除后发现即使是外部表，包含数据全部被删除，使用时需要注意。 Alt text

6.2 删除HiveCatalog表

对于HiveCatalog而言：

在0.14之前，运行DROP TABLE将从catalog中删除表并删除表内容。
从0.14开始，DROP TABLE只会从catalog中删除表，不会删除数据。为了删除表内容，应该使用DROP table PURGE。
比如删除ice_spark_sample5, 删除之前发现里面有数据：

0: jdbc:hive2://hadoop103:10000> drop table ice_spark_sample5;
+---------+
| Result  |
+---------+
+---------+
No rows selected (1.172 seconds)

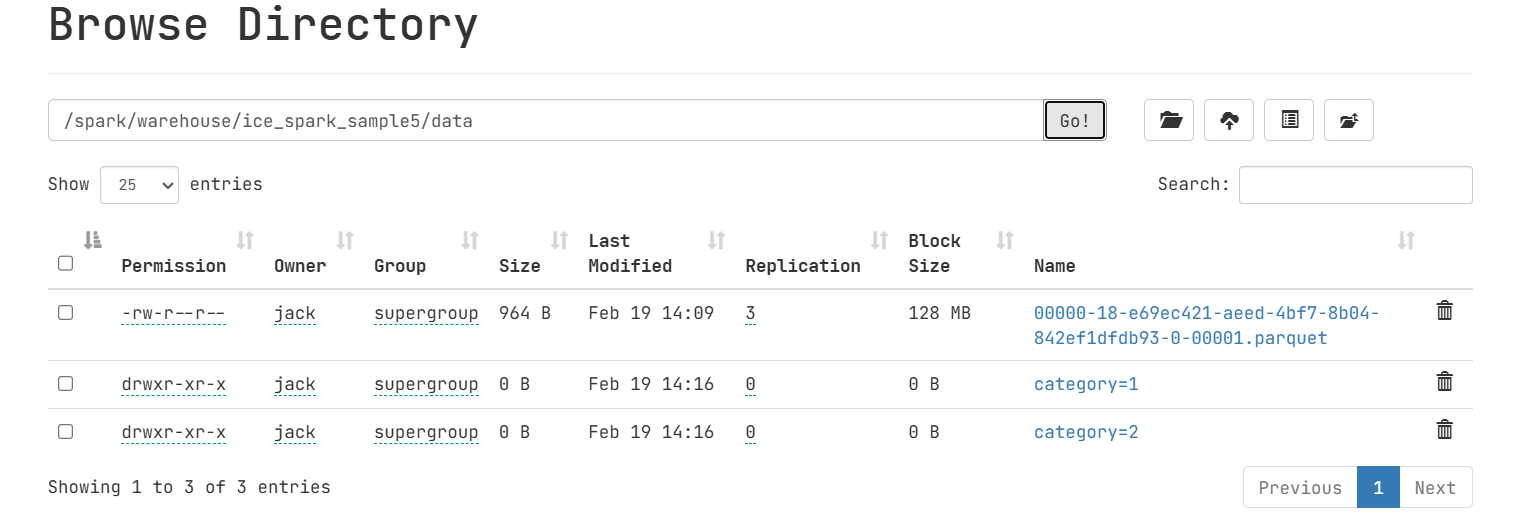

执行完毕后，查看HDFS上面数据还在：
Alt text

7. 插入数据

7.1 插入分区表

0: jdbc:hive2://hadoop103:10000> insert into ice_spark_sample1 values(1, 'jack');
+---------+
| Result  |
+---------+
+---------+
No rows selected (5.012 seconds)

查看查看HDFS上的信息： Alt text

7.2 插入隐藏分区表

0: jdbc:hive2://hadoop103:10000> insert into ice_spark_sample4 values(3, 'bobo','3',timestamp'2025-02-19 14:51:20'),(4, 'pipia','3', timestamp'2025-01-18 20:11:06');
+---------+
| Result  |
+---------+
+---------+
No rows selected (4.27 seconds)
0: jdbc:hive2://hadoop103:10000> select * from ice_spark_sample4;
+-----+--------+-----------+------------------------+
| id  |  data  | category  |           ts           |
+-----+--------+-----------+------------------------+
| 3   | bobo   | 3         | 2025-02-19 14:51:20.0  |
| 4   | pipia  | 3         | 2025-01-18 20:11:06.0  |
| 2   | test   | 3         | 2025-02-18 00:00:00.0  |
| 1   | demo   | 2         | 2025-02-19 00:00:00.0  |
+-----+--------+-----------+------------------------+

7.3 MERGE INTO行级更新

匹配规则比较灵活比较好用

MERGE INTO hadoop_prod.default.a t
USING (SELECT * FROM hadoop_prod.default.b) u ON t.id = u.id
WHEN MATCHED AND u.flag='b' THEN UPDATE SET t.count = t.count + u.count
WHEN MATCHED AND u.flag='a' THEN DELETE
WHEN NOT MATCHED THEN INSERT (id,count) values (u.id,u.count)

8. 更新数据

iceberg目前还不支持更新表数据：

0: jdbc:hive2://hadoop103:10000> update ice_spark_sample1 set data='jack123' where id=1;
+---------+
| Result  |
+---------+
+---------+
No rows selected (4.112 seconds)
0: jdbc:hive2://hadoop103:10000> select * from ice_spark_sample1;
+-----+----------+
| id  |   data   |
+-----+----------+
| 1   | jack123  |
| 2   | tom      |
+-----+----------+
2 rows selected (0.303 seconds)

9. 查询表

9.1 查询表数据

sql

select * from ice_spark_sample1 where id=2;

9.2 查询元数据

查询的表名需要按照catalog名.数据库名.表名的全名才能查询：

sql

-- 查询表快照
SELECT * FROM hive_prod.default.ice_spark_sample1.snapshots;
-- 查询数据文件信息
SELECT * FROM hive_prod.default.ice_spark_sample1.files;
-- 查询表历史
SELECT * FROM hive_prod.default.ice_spark_sample1.history;
-- 查询 manifest
SELECT * FROM hive_prod.default.ice_spark_sample1.manifests;

比如查询ice_spark_sample1当前的数据和快照：

-- 字段比较多，选取了部分显示
0: jdbc:hive2://hadoop103:10000> select committed_at, snapshot_id, operation from hive_prod.default.ice_spark_sample1.snapshots;
+--------------------------+----------------------+------------+
|       committed_at       |     snapshot_id      | operation  |
+--------------------------+----------------------+------------+
| 2025-02-19 10:30:08.555  | 5825989728064739405  | append     |
| 2025-02-19 12:46:48.009  | 8230451385389770413  | append     |
| 2025-02-19 15:08:29.046  | 7404723281141935099  | overwrite  |
| 2025-02-19 16:00:35.952  | 4012613232180724766  | append     |
+--------------------------+----------------------+------------+

10. 存储过程

iceberge的存储过程作用是用来管理我们表，比如快照管理、元数据管理、迁移表等。同上需要Spark配置参数项spark.sql.extensions才能支持。

10.1 快照管理

回滚到指定的快照id

sql

-- ice_spark_sample1最新版本是4012613232180724766，有4条数据。
CALL hive_prod.system.rollback_to_snapshot('default.ice_spark_sample1', 7404723281141935099);

查询当前快照的数据：

0: jdbc:hive2://hadoop103:10000> select * from ice_spark_sample1;
+-----+----------+
| id  |   data   |
+-----+----------+
| 2   | tom      |
| 1   | jack123  |
+-----+----------+

回滚到指定时间的快照

sql

CALL hive_prod.system.rollback_to_timestamp('db.sample', TIMESTAMP '2021-06-30 00:00:00.000');

设置表的当前快照ID

sql

CALL hive_prod.system.set_current_snapshot('db.sample', 1);

从快照变为当前表状态

sql

CALL hive_prod.system.cherrypick_snapshot('default.a', 7629160535368763452);

10.2 元数据管理

删除早于指定日期和时间的快照，但保留最近100个快照

sql

-- 到期快照会被删除
CALL hive_prod.system.expire_snapshots('db.sample', TIMESTAMP '2021-06-30 00:00:00.000', 100)

删除Iceberg表中任何元数据文件中没有引用的文件

sql

-- 列出所有需要删除的候选文件
CALL catalog_name.system.remove_orphan_files(table => 'db.sample', dry_run => true);

-- 删除指定目录中db.sample表不知道的任何文件
CALL catalog_name.system.remove_orphan_files(table => 'db.sample', location => 'tablelocation/data');

合并小文件

sql

CALL catalog_name.system.rewrite_data_files('db.sample');
CALL catalog_name.system.rewrite_data_files(table => 'db.sample', where => 'id = 3 and name = "foo"')

迁移表

sql

-- 快照
CALL catalog_name.system.snapshot('db.sample', 'db.snap');
-- 迁移
CALL catalog_name.system.migrate('db.sample');
-- 添加数据文件
CALL spark_catalog.system.add_files(
table => 'db.tbl',
source_table => 'db.src_tbl',
partition_filter => map('part_col_1', 'A')
);

元数据信息

sql

-- 获取指定快照的父快照id
CALL spark_catalog.system.ancestors_of('db.tbl');
-- 获取指定快照的所有祖先快照
CALL spark_catalog.system.ancestors_of('db.tbl', 1);

与SparkSql集成 ​

1. 环境准备 ​

1.1 下载iceberg ​

1.2 拷贝iceberg的jar包到Spark的jars目录 ​

1.3 启动环境依赖 ​

2. 配置SparkSql ​

2.1 配置Hive Catalog ​

2.2 配置Hadoop Catalog ​

3. 启动SparkSql ​

4. 创建表 ​

4.1 创建内部表 ​

4.2 创建外部表 ​

4.3 创建分区表 ​

4.4 创建隐藏分区表 ​

4.5 CTAS建表 ​

4.6 使用RTAS建表 ​

5. 修改表 ​

5.1 修改表名 ​

5.2 修改表属性 ​

5.3 添加字段 ​

5.4 修改字段 ​

5.5 删除字段 ​

5.6 添加分区 ​

5.7 删除分区 ​

5.8 并行分区写入 ​

6. 删除表 ​

6.1 删除HadoopCatalog表 ​

6.2 删除HiveCatalog表 ​

7. 插入数据 ​

7.1 插入分区表 ​

7.2 插入隐藏分区表 ​

7.3 MERGE INTO行级更新 ​

8. 更新数据 ​

9. 查询表 ​

9.1 查询表数据 ​

9.2 查询元数据 ​

10. 存储过程 ​

10.1 快照管理 ​

10.2 元数据管理 ​

与SparkSql集成

1. 环境准备

1.1 下载iceberg

1.2 拷贝iceberg的jar包到Spark的jars目录

1.3 启动环境依赖

2. 配置SparkSql

2.1 配置Hive Catalog

2.2 配置Hadoop Catalog

3. 启动SparkSql

4. 创建表

4.1 创建内部表

4.2 创建外部表

4.3 创建分区表

4.4 创建隐藏分区表

4.5 CTAS建表

4.6 使用RTAS建表

5. 修改表

5.1 修改表名

5.2 修改表属性

5.3 添加字段

5.4 修改字段

5.5 删除字段

5.6 添加分区

5.7 删除分区

5.8 并行分区写入

6. 删除表

6.1 删除HadoopCatalog表

6.2 删除HiveCatalog表

7. 插入数据

7.1 插入分区表

7.2 插入隐藏分区表

7.3 MERGE INTO行级更新

8. 更新数据

9. 查询表

9.1 查询表数据

9.2 查询元数据

10. 存储过程

10.1 快照管理

10.2 元数据管理
