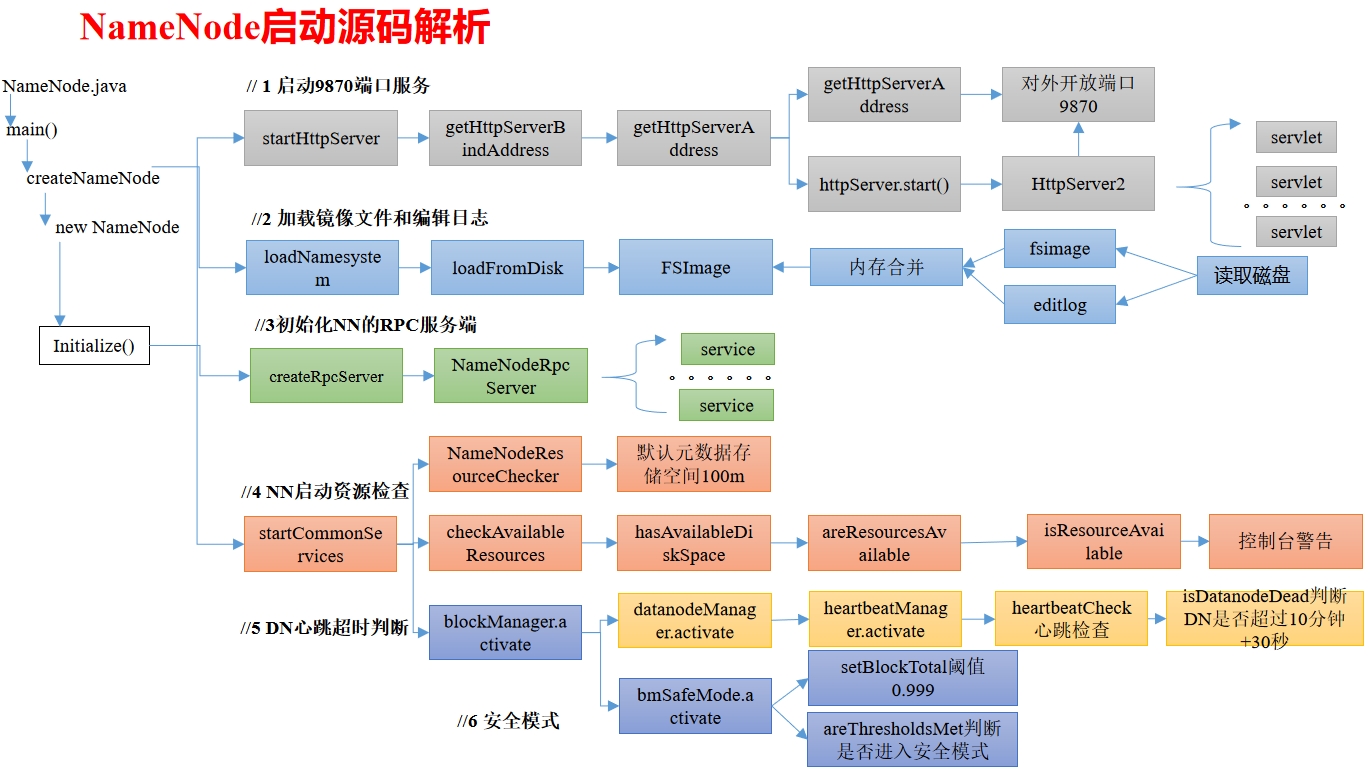

NameNode启动源码解析

Alt text

1. 在pom.xml中增加如下依赖

xml

<dependency>
    <groupId>org.apache.hadoop</groupId>
    <artifactId>hadoop-client</artifactId>
    <version>3.3.6</version>
</dependency>
<dependency>
    <groupId>org.apache.hadoop</groupId>
    <artifactId>hadoop-hdfs</artifactId>
    <version>3.3.6</version>
</dependency>
<dependency>
    <groupId>org.apache.hadoop</groupId>
    <artifactId>hadoop-hdfs-client</artifactId>
    <version>3.3.6</version>
    <scope>provided</scope>
</dependency>

2. Ctrl + n 全局查找namenode，进入NameNode.java

NameNode官方说明:

NameNode serves as both directory namespace manager and "inode table" for the Hadoop DFS. There is a single NameNode running in any DFS deployment. (Well, except when there is a second backup/failover NameNode, or when using federated NameNodes.) The NameNode controls two critical tables: 1) filename->blocksequence (namespace) 2) block->machinelist ("inodes") The first table is stored on disk and is very precious. The second table is rebuilt every time the NameNode comes up. 'NameNode' refers to both this class as well as the 'NameNode server'. The 'FSNamesystem' class actually performs most of the filesystem management. The majority of the 'NameNode' class itself is concerned with exposing the IPC interface and the HTTP server to the outside world, plus some configuration management. NameNode implements the ClientProtocol interface, which allows clients to ask for DFS services. ClientProtocol is not designed for direct use by authors of DFS client code. End-users should instead use the FileSystem class. NameNode also implements the DatanodeProtocol interface, used by DataNodes that actually store DFS data blocks. These methods are invoked repeatedly and automatically by all the DataNodes in a DFS deployment. NameNode also implements the NamenodeProtocol interface, used by secondary namenodes or rebalancing processes to get partial NameNode state, for example partial blocksMap etc.

Ctrl + f，查找main方法 NameNode.java

java

public static void main(String argv[]) throws Exception {
	if (DFSUtil.parseHelpArgument(argv, NameNode.USAGE, System.out, true)) {
		System.exit(0);
	}

	try {
		StringUtils.startupShutdownMessage(NameNode.class, argv, LOG);
		// 创建NameNode
		NameNode namenode = createNameNode(argv, null);
		if (namenode != null) {
			namenode.join();
		}
	} catch (Throwable e) {
		LOG.error("Failed to start namenode.", e);
		terminate(1, e);
	}
}

点击createNameNode

java

public static NameNode createNameNode(String argv[], Configuration conf)
    throws IOException {
  … …
  StartupOption startOpt = parseArguments(argv);
  if (startOpt == null) {
    printUsage(System.err);
    return null;
  }
  setStartupOption(conf, startOpt);

  boolean aborted = false;
  switch (startOpt) {
  case FORMAT:
    aborted = format(conf, startOpt.getForceFormat(),
        startOpt.getInteractiveFormat());
    terminate(aborted ? 1 : 0);
    return null; // avoid javac warning
  case GENCLUSTERID:
    … …
  default:
    DefaultMetricsSystem.initialize("NameNode");
	// 创建NameNode对象
    return new NameNode(conf);
  }
}

点击NameNode

java

public NameNode(Configuration conf) throws IOException {
  this(conf, NamenodeRole.NAMENODE);
}

protected NameNode(Configuration conf, NamenodeRole role)
    throws IOException {
  ... ...

  try {
    initializeGenericKeys(conf, nsId, namenodeId);
    initialize(getConf());
    ... ...
  } catch (IOException e) {
    this.stopAtException(e);
    throw e;
  } catch (HadoopIllegalArgumentException e) {
    this.stopAtException(e);
    throw e;
  }
  this.started.set(true);
}

点击initialize

java

protected void initialize(Configuration conf) throws IOException {
  ... ...

  if (NamenodeRole.NAMENODE == role) {
	// 启动HTTP服务端(9870)
    startHttpServer(conf);
  }

  // 加载镜像文件和编辑日志到内存
  loadNamesystem(conf);
  startAliasMapServerIfNecessary(conf);

  // 创建NN的RPC服务端
  rpcServer = createRpcServer(conf);

  initReconfigurableBackoffKey();

  if (clientNamenodeAddress == null) {
    // This is expected for MiniDFSCluster. Set it now using
    // the RPC server's bind address.
    clientNamenodeAddress =
        NetUtils.getHostPortString(getNameNodeAddress());
    LOG.info("Clients are to use " + clientNamenodeAddress + " to access"
        + " this namenode/service.");
  }
  if (NamenodeRole.NAMENODE == role) {
    httpServer.setNameNodeAddress(getNameNodeAddress());
    httpServer.setFSImage(getFSImage());
  }

  // NN启动资源检查
  startCommonServices(conf);
  startMetricsLogger(conf);
}

3. 启动9870端口服务

点击startHttpServer NameNode.java

java

private void startHttpServer(final Configuration conf) throws IOException {
	httpServer = new NameNodeHttpServer(conf, this, getHttpServerBindAddress(conf));
	httpServer.start();
	httpServer.setStartupProgress(startupProgress);
}

protected InetSocketAddress getHttpServerBindAddress(Configuration conf) {
  InetSocketAddress bindAddress = getHttpServerAddress(conf);

  ... ...
  return bindAddress;
}

protected InetSocketAddress getHttpServerAddress(Configuration conf) {
  return getHttpAddress(conf);
}

public static InetSocketAddress getHttpAddress(Configuration conf) {
	return  NetUtils.createSocketAddr(
      conf.getTrimmed(DFS_NAMENODE_HTTP_ADDRESS_KEY, DFS_NAMENODE_HTTP_ADDRESS_DEFAULT));
}

public static final String  DFS_NAMENODE_HTTP_ADDRESS_DEFAULT = "0.0.0.0:" + DFS_NAMENODE_HTTP_PORT_DEFAULT;

public static final int     DFS_NAMENODE_HTTP_PORT_DEFAULT =
HdfsClientConfigKeys.DFS_NAMENODE_HTTP_PORT_DEFAULT;

int  DFS_NAMENODE_HTTP_PORT_DEFAULT = 9870;

点击startHttpServer方法中的httpServer.start(); NameNodeHttpServer.java

java

void start() throws IOException {
  ... ...
  // Hadoop自己封装了HttpServer，形成自己的HttpServer2
  HttpServer2.Builder builder = DFSUtil.httpServerTemplateForNNAndJN(conf,
      httpAddr, httpsAddr, "hdfs",
      DFSConfigKeys.DFS_NAMENODE_KERBEROS_INTERNAL_SPNEGO_PRINCIPAL_KEY,
      DFSConfigKeys.DFS_NAMENODE_KEYTAB_FILE_KEY);
  ... ...

  httpServer = builder.build();

  ... ...

  httpServer.setAttribute(NAMENODE_ATTRIBUTE_KEY, nn);
  httpServer.setAttribute(JspHelper.CURRENT_CONF, conf);
  setupServlets(httpServer, conf);
  httpServer.start();

  ... ...
}

点击setupServlets

java

private static void setupServlets(HttpServer2 httpServer, Configuration conf) {
	httpServer.addInternalServlet("startupProgress",
		StartupProgressServlet.PATH_SPEC, StartupProgressServlet.class);
	httpServer.addInternalServlet("fsck", "/fsck", FsckServlet.class,
		true);
	httpServer.addInternalServlet("imagetransfer", ImageServlet.PATH_SPEC,
      ImageServlet.class, true);
}

4. 加载镜像文件和编辑日志

点击loadNamesystem NameNode.java

java

protected void loadNamesystem(Configuration conf) throws IOException {
	this.namesystem = FSNamesystem.loadFromDisk(conf);
}

static FSNamesystem loadFromDisk(Configuration conf) throws IOException {

  checkConfiguration(conf);

  FSImage fsImage = new FSImage(conf,
      FSNamesystem.getNamespaceDirs(conf),
      FSNamesystem.getNamespaceEditsDirs(conf));

  FSNamesystem namesystem = new FSNamesystem(conf, fsImage, false);
  StartupOption startOpt = NameNode.getStartupOption(conf);
  if (startOpt == StartupOption.RECOVER) {
    namesystem.setSafeMode(SafeModeAction.SAFEMODE_ENTER);
  }

  long loadStart = monotonicNow();
  try {
    namesystem.loadFSImage(startOpt);
  } catch (IOException ioe) {
    LOG.warn("Encountered exception loading fsimage", ioe);
    fsImage.close();
    throw ioe;
  }
  long timeTakenToLoadFSImage = monotonicNow() - loadStart;
  LOG.info("Finished loading FSImage in " + timeTakenToLoadFSImage + " msecs");
  NameNodeMetrics nnMetrics = NameNode.getNameNodeMetrics();
  if (nnMetrics != null) {
    nnMetrics.setFsImageLoadTime((int) timeTakenToLoadFSImage);
  }
  namesystem.getFSDirectory().createReservedStatuses(namesystem.getCTime());
  return namesystem;

5. 初始化NN的RPC服务端

点击createRpcServer NameNode.java

java

protected NameNodeRpcServer createRpcServer(Configuration conf)
  throws IOException {
return new NameNodeRpcServer(conf, this);
}

NameNodeRpcServer.java

java

public NameNodeRpcServer(Configuration conf, NameNode nn)
      throws IOException {
	... ....
    serviceRpcServer = new RPC.Builder(conf)
        .setProtocol(
            org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolPB.class)
        .setInstance(clientNNPbService)
        .setBindAddress(bindHost)
        .setPort(serviceRpcAddr.getPort())
        .setNumHandlers(serviceHandlerCount)
        .setVerbose(false)
        .setSecretManager(namesystem.getDelegationTokenSecretManager())
        .build();
	... ....
}

6. NN启动资源检查

点击startCommonServices NameNode.java

java

private void startCommonServices(Configuration conf) throws IOException {

  namesystem.startCommonServices(conf, haContext);

  registerNNSMXBean();
  if (NamenodeRole.NAMENODE != role) {
    startHttpServer(conf);
    httpServer.setNameNodeAddress(getNameNodeAddress());
    httpServer.setFSImage(getFSImage());
  }
  rpcServer.start();
  try {
    plugins = conf.getInstances(DFS_NAMENODE_PLUGINS_KEY,
        ServicePlugin.class);
  } catch (RuntimeException e) {
    String pluginsValue = conf.get(DFS_NAMENODE_PLUGINS_KEY);
    LOG.error("Unable to load NameNode plugins. Specified list of plugins: " +
        pluginsValue, e);
    throw e;
  }
  … …
}

点击startCommonServices FSNamesystem.java

java

void startCommonServices(Configuration conf, HAContext haContext) throws IOException {
  this.registerMBean(); // register the MBean for the FSNamesystemState
  writeLock();
  this.haContext = haContext;
  try {
    nnResourceChecker = new NameNodeResourceChecker(conf);
    // 检查是否有足够的磁盘存储元数据(fsimage(默认100m) editLog(默认100m))
    checkAvailableResources();

    assert !blockManager.isPopulatingReplQueues();
    StartupProgress prog = NameNode.getStartupProgress();
    prog.beginPhase(Phase.SAFEMODE);
long completeBlocksTotal = getCompleteBlocksTotal();

    // 安全模式
    prog.setTotal(Phase.SAFEMODE, STEP_AWAITING_REPORTED_BLOCKS,
        completeBlocksTotal);

    // 启动块服务
    blockManager.activate(conf, completeBlocksTotal);
  } finally {
    writeUnlock("startCommonServices");
  }

  registerMXBean();
  DefaultMetricsSystem.instance().register(this);
  if (inodeAttributeProvider != null) {
    inodeAttributeProvider.start();
    dir.setINodeAttributeProvider(inodeAttributeProvider);
  }
  snapshotManager.registerMXBean();
  InetSocketAddress serviceAddress = NameNode.getServiceAddress(conf, true);
  this.nameNodeHostName = (serviceAddress != null) ?
      serviceAddress.getHostName() : "";
}

点击NameNodeResourceChecker NameNodeResourceChecker.java

java

public NameNodeResourceChecker(Configuration conf) throws IOException {
  this.conf = conf;
  volumes = new HashMap<String, CheckedVolume>();

  // dfs.namenode.resource.du.reserved默认值 1024 * 1024 * 100 =》100m
  duReserved = conf.getLong(DFSConfigKeys.DFS_NAMENODE_DU_RESERVED_KEY,
      DFSConfigKeys.DFS_NAMENODE_DU_RESERVED_DEFAULT);

  Collection<URI> extraCheckedVolumes = Util.stringCollectionAsURIs(conf
      .getTrimmedStringCollection(DFSConfigKeys.DFS_NAMENODE_CHECKED_VOLUMES_KEY));

  Collection<URI> localEditDirs = Collections2.filter(
      FSNamesystem.getNamespaceEditsDirs(conf),
      new Predicate<URI>() {
        @Override
        public boolean apply(URI input) {
          if (input.getScheme().equals(NNStorage.LOCAL_URI_SCHEME)) {
            return true;
          }
          return false;
        }
      });

  // 对所有路径进行资源检查
  for (URI editsDirToCheck : localEditDirs) {
    addDirToCheck(editsDirToCheck,
        FSNamesystem.getRequiredNamespaceEditsDirs(conf).contains(
            editsDirToCheck));
  }

  // All extra checked volumes are marked "required"
  for (URI extraDirToCheck : extraCheckedVolumes) {
    addDirToCheck(extraDirToCheck, true);
  }

  minimumRedundantVolumes = conf.getInt(
      DFSConfigKeys.DFS_NAMENODE_CHECKED_VOLUMES_MINIMUM_KEY,
      DFSConfigKeys.DFS_NAMENODE_CHECKED_VOLUMES_MINIMUM_DEFAULT);
}

点击checkAvailableResources FNNamesystem.java

java

void checkAvailableResources() {
	long resourceCheckTime = monotonicNow();
	Preconditions.checkState(nnResourceChecker != null,
		"nnResourceChecker not initialized");

	// 判断资源是否足够，不够返回false
	hasResourcesAvailable = nnResourceChecker.hasAvailableDiskSpace();

	resourceCheckTime = monotonicNow() - resourceCheckTime;
	NameNode.getNameNodeMetrics().addResourceCheckTime(resourceCheckTime);
}

NameNodeResourceChecker.java

java

public boolean hasAvailableDiskSpace() {
	return NameNodeResourcePolicy.areResourcesAvailable(volumes.values(),
      minimumRedundantVolumes);
}

NameNodeResourcePolicy.java

java

static boolean areResourcesAvailable(
    Collection<? extends CheckableNameNodeResource> resources,
    int minimumRedundantResources) {

  // TODO: workaround:
  // - during startup, if there are no edits dirs on disk, then there is
  // a call to areResourcesAvailable() with no dirs at all, which was
  // previously causing the NN to enter safemode
  if (resources.isEmpty()) {
    return true;
  }

  int requiredResourceCount = 0;
  int redundantResourceCount = 0;
  int disabledRedundantResourceCount = 0;

  // 判断资源是否充足
  for (CheckableNameNodeResource resource : resources) {
    if (!resource.isRequired()) {
      redundantResourceCount++;
      if (!resource.isResourceAvailable()) {
        disabledRedundantResourceCount++;
      }
    } else {
      requiredResourceCount++;
      if (!resource.isResourceAvailable()) {
        // Short circuit - a required resource is not available. 不充足返回false
        return false;
      }
    }
  }

  if (redundantResourceCount == 0) {
    // If there are no redundant resources, return true if there are any
    // required resources available.
    return requiredResourceCount > 0;
  } else {
    return redundantResourceCount - disabledRedundantResourceCount >=
        minimumRedundantResources;
  }
}

interface CheckableNameNodeResource {

  public boolean isResourceAvailable();

  public boolean isRequired();
}

Ctrl + h，查找实现类CheckedVolume NameNodeResourceChecker.java

java

public boolean isResourceAvailable() {

  // 获取当前目录的空间大小
  long availableSpace = df.getAvailable();

  if (LOG.isDebugEnabled()) {
    LOG.debug("Space available on volume '" + volume + "' is "
        + availableSpace);
  }

  // 如果当前空间大小，小于100m，返回false
  if (availableSpace < duReserved) {
    LOG.warn("Space available on volume '" + volume + "' is "
        + availableSpace +
        ", which is below the configured reserved amount " + duReserved);
    return false;
  } else {
    return true;
  }
}

7. NN对心跳超时判断

Ctrl + n 搜索namenode，ctrl + f搜索startCommonServices
点击namesystem.startCommonServices(conf, haContext);
点击blockManager.activate(conf, completeBlocksTotal);
点击datanodeManager.activate(conf);
DatanodeManager.java

java

void activate(final Configuration conf) {
  datanodeAdminManager.activate(conf);
  heartbeatManager.activate();
}

DatanodeManager.java

java

void activate() {
  // 启动的线程，搜索run方法
  heartbeatThread.start();
}

public void run() {
  while(namesystem.isRunning()) {
    restartHeartbeatStopWatch();
    try {
      final long now = Time.monotonicNow();
      if (lastHeartbeatCheck + heartbeatRecheckInterval < now) {
		// 心跳检查
        heartbeatCheck();
        lastHeartbeatCheck = now;
      }
      if (blockManager.shouldUpdateBlockKey(now - lastBlockKeyUpdate)) {
        synchronized(HeartbeatManager.this) {
          for(DatanodeDescriptor d : datanodes) {
            d.setNeedKeyUpdate(true);
          }
        }
        lastBlockKeyUpdate = now;
      }
    } catch (Exception e) {
      LOG.error("Exception while checking heartbeat", e);
    }
    try {
      Thread.sleep(5000);  // 5 seconds
    } catch (InterruptedException ignored) {
    }
    // avoid declaring nodes dead for another cycle if a GC pause lasts
    // longer than the node recheck interval
    if (shouldAbortHeartbeatCheck(-5000)) {
      LOG.warn("Skipping next heartbeat scan due to excessive pause");
      lastHeartbeatCheck = Time.monotonicNow();
    }
  }
}

void heartbeatCheck() {
  final DatanodeManager dm = blockManager.getDatanodeManager();

  boolean allAlive = false;
  while (!allAlive) {
    // locate the first dead node.
    DatanodeDescriptor dead = null;

    // locate the first failed storage that isn't on a dead node.
    DatanodeStorageInfo failedStorage = null;

    // check the number of stale nodes
    int numOfStaleNodes = 0;
    int numOfStaleStorages = 0;
    synchronized(this) {
      for (DatanodeDescriptor d : datanodes) {
        // check if an excessive GC pause has occurred
        if (shouldAbortHeartbeatCheck(0)) {
          return;
        }
		// 判断DN节点是否挂断
        if (dead == null && dm.isDatanodeDead(d)) {
          stats.incrExpiredHeartbeats();
          dead = d;
        }
        if (d.isStale(dm.getStaleInterval())) {
          numOfStaleNodes++;
        }
        DatanodeStorageInfo[] storageInfos = d.getStorageInfos();
        for(DatanodeStorageInfo storageInfo : storageInfos) {
          if (storageInfo.areBlockContentsStale()) {
            numOfStaleStorages++;
          }

          if (failedStorage == null &&
              storageInfo.areBlocksOnFailedStorage() &&
              d != dead) {
            failedStorage = storageInfo;
          }
        }
      }

      // Set the number of stale nodes in the DatanodeManager
      dm.setNumStaleNodes(numOfStaleNodes);
      dm.setNumStaleStorages(numOfStaleStorages);
    }
    ... ...
  }
}

boolean isDatanodeDead(DatanodeDescriptor node) {
  return (node.getLastUpdateMonotonic() <
          (monotonicNow() - heartbeatExpireInterval));
}

private long heartbeatExpireInterval;
// 10分钟 + 30秒
this.heartbeatExpireInterval = 2 * heartbeatRecheckInterval + 10 * 1000 * heartbeatIntervalSeconds;

private volatile int heartbeatRecheckInterval;
heartbeatRecheckInterval = conf.getInt(
        DFSConfigKeys.DFS_NAMENODE_HEARTBEAT_RECHECK_INTERVAL_KEY,
        DFSConfigKeys.DFS_NAMENODE_HEARTBEAT_RECHECK_INTERVAL_DEFAULT); // 5 minutes

private volatile long heartbeatIntervalSeconds;
heartbeatIntervalSeconds = conf.getTimeDuration(
        DFSConfigKeys.DFS_HEARTBEAT_INTERVAL_KEY,
        DFSConfigKeys.DFS_HEARTBEAT_INTERVAL_DEFAULT, TimeUnit.SECONDS);
public static final long    DFS_HEARTBEAT_INTERVAL_DEFAULT = 3;

8. 安全模式

FSNamesystem.java

java

void startCommonServices(Configuration conf, HAContext haContext) throws IOException {
  this.registerMBean(); // register the MBean for the FSNamesystemState
  writeLock();
  this.haContext = haContext;
  try {
    nnResourceChecker = new NameNodeResourceChecker(conf);
    // 检查是否有足够的磁盘存储元数据(fsimage(默认100m) editLog(默认100m))
    checkAvailableResources();

    assert !blockManager.isPopulatingReplQueues();
    StartupProgress prog = NameNode.getStartupProgress();

    // 开始进入安全模式
    prog.beginPhase(Phase.SAFEMODE);

    // 获取所有可以正常使用的block
long completeBlocksTotal = getCompleteBlocksTotal();

    prog.setTotal(Phase.SAFEMODE, STEP_AWAITING_REPORTED_BLOCKS,
        completeBlocksTotal);

    // 启动块服务
    blockManager.activate(conf, completeBlocksTotal);
  } finally {
    writeUnlock("startCommonServices");
  }

  registerMXBean();
  DefaultMetricsSystem.instance().register(this);
  if (inodeAttributeProvider != null) {
    inodeAttributeProvider.start();
    dir.setINodeAttributeProvider(inodeAttributeProvider);
  }
  snapshotManager.registerMXBean();
  InetSocketAddress serviceAddress = NameNode.getServiceAddress(conf, true);
  this.nameNodeHostName = (serviceAddress != null) ?
      serviceAddress.getHostName() : "";
}

点击getCompleteBlocksTotal

java

public long getCompleteBlocksTotal() {
  // Calculate number of blocks under construction
  long numUCBlocks = 0;
  readLock();
  try {
    // 获取正在构建的block
    numUCBlocks = leaseManager.getNumUnderConstructionBlocks();
	// 获取所有的块 - 正在构建的block = 可以正常使用的block
    return getBlocksTotal() - numUCBlocks;
  } finally {
    readUnlock("getCompleteBlocksTotal");
  }
}

点击activate

java

public void activate(Configuration conf, long blockTotal) {
	pendingReconstruction.start();
	datanodeManager.activate(conf);

	this.redundancyThread.setName("RedundancyMonitor");
	this.redundancyThread.start();

	storageInfoDefragmenterThread.setName("StorageInfoMonitor");
	storageInfoDefragmenterThread.start();
	this.blockReportThread.start();

	mxBeanName = MBeans.register("NameNode", "BlockStats", this);

	bmSafeMode.activate(blockTotal);
}

点击activate

java

void activate(long total) {
  assert namesystem.hasWriteLock();
  assert status == BMSafeModeStatus.OFF;

  startTime = monotonicNow();

  // 计算是否满足块个数的阈值
  setBlockTotal(total);

  // 判断DataNode节点和块信息是否达到退出安全模式标准
  if (areThresholdsMet()) {
    boolean exitResult = leaveSafeMode(false);
    Preconditions.checkState(exitResult, "Failed to leave safe mode.");
  } else {
    // enter safe mode
status = BMSafeModeStatus.PENDING_THRESHOLD;

initializeReplQueuesIfNecessary();

    reportStatus("STATE* Safe mode ON.", true);
    lastStatusReport = monotonicNow();
  }
}

点击setBlockTotal

java

void setBlockTotal(long total) {
  assert namesystem.hasWriteLock();
  synchronized (this) {
    this.blockTotal = total;
	// 计算阈值：例如：1000个正常的块 * 0.999 = 999
    this.blockThreshold = (long) (total * threshold);
  }

  this.blockReplQueueThreshold = (long) (total * replQueueThreshold);
}

this.threshold = conf.getFloat(DFS_NAMENODE_SAFEMODE_THRESHOLD_PCT_KEY,
        DFS_NAMENODE_SAFEMODE_THRESHOLD_PCT_DEFAULT);

public static final float   DFS_NAMENODE_SAFEMODE_THRESHOLD_PCT_DEFAULT = 0.999f;

点击areThresholdsMet

java

private boolean areThresholdsMet() {
  assert namesystem.hasWriteLock();
  // Calculating the number of live datanodes is time-consuming
  // in large clusters. Skip it when datanodeThreshold is zero.
  int datanodeNum = 0;

  if (datanodeThreshold > 0) {
    datanodeNum = blockManager.getDatanodeManager().getNumLiveDataNodes();
  }
  synchronized (this) {
  // 已经正常注册的块数 》= 块的最小阈值 》=最小可用DataNode
    return blockSafe >= blockThreshold && datanodeNum >= datanodeThreshold;
  }
}

NameNode启动源码解析 ​

1. 在pom.xml中增加如下依赖 ​

2. Ctrl + n 全局查找namenode，进入NameNode.java ​

3. 启动9870端口服务 ​

4. 加载镜像文件和编辑日志 ​

5. 初始化NN的RPC服务端 ​

6. NN启动资源检查 ​

7. NN对心跳超时判断 ​

8. 安全模式 ​

NameNode启动源码解析

1. 在pom.xml中增加如下依赖

2. Ctrl + n 全局查找namenode，进入NameNode.java

3. 启动9870端口服务

4. 加载镜像文件和编辑日志

5. 初始化NN的RPC服务端

6. NN启动资源检查

7. NN对心跳超时判断

8. 安全模式
