DataStream方式的应用 ​

1. 添加依赖 ​

由于Hadoop集群使用的是JDK8环境，如果部署FLink为yarn模式的话，需要设置FLink的jdk环境为1.8。

xml
<properties>
    <maven.compiler.source>8</maven.compiler.source>
    <maven.compiler.target>8</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <flink-version>1.17.2</flink-version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-java</artifactId>
        <version>${flink-version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-streaming-java</artifactId>
        <version>${flink-version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-clients</artifactId>
        <version>${flink-version}</version>
        <scope>provided</scope>
    </dependency>
    <!-- Flink CDC 依赖 -->
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-mysql-cdc</artifactId>
        <version>3.3.0</version>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.31</version>
    </dependency>
    <!--idea运行时也有webui-->
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-runtime-web</artifactId>
        <version>${flink-version}</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-streaming-java</artifactId>
        <version>1.17.2</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-connector-base</artifactId>
        <version>1.17.2</version>
    </dependency>
    <dependency>
        <groupId>org.apache.flink</groupId>
        <artifactId>flink-table-api-java-bridge</artifactId>
        <version>1.17.2</version>
    </dependency>
    <dependency>
        <groupId>org.apache.hadoop</groupId>
        <artifactId>hadoop-client</artifactId>
        <version>3.3.6</version>
        <scope>provided</scope>
    </dependency>
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-shade-plugin</artifactId>
            <version>3.5.2</version>
            <executions>
                <execution>
                    <phase>package</phase>
                    <goals>
                        <goal>shade</goal>
                    </goals>
                    <configuration>
                        <filters>
                            <filter>
                                <artifact>io.debezium:debezium-connector-mysql:1.9.8.Final</artifact>
                                <excludes>
                                    <!--MySqlConnection类在flink-connector-mysql-cdc-3.3.0.jar被重写，不能使用debezium-connector-mysql中的MySqlConnection类  -->
                                    <exclude>io/debezium/connector/mysql/MySqlConnection.class</exclude>
                                </excludes>
                            </filter>
                        </filters>
                        <!-- 以下配置确保生成可执行的 Flat JAR -->
                        <transformers>
                            <transformer
                                    implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                <!-- 指定主类，如果你有可执行的主类 -->
                                <mainClass>com.rocket.flink.FlinkCDCDataStreamTest</mainClass>
                            </transformer>
                        </transformers>
                    </configuration>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

2. 编写代码 ​

java
public class FlinkCDCDataStreamTest {
    public static void main(String[] args) throws Exception {
        // 1. 准备流处理环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        // 2. 开启检查点   Flink-CDC将读取binlog的位置信息以状态的方式保存在CK,如果想要做到断点续传,
        // 需要从Checkpoint或者Savepoint启动程序
        // 2.1 开启Checkpoint,每隔5秒钟做一次CK  ,并指定CK的一致性语义
        env.enableCheckpointing(3000L, CheckpointingMode.EXACTLY_ONCE);
        // 2.2 设置超时时间为 1 分钟
        env.getCheckpointConfig().setCheckpointTimeout(60 * 1000L);
        // 2.3 设置两次重启的最小时间间隔
        env.getCheckpointConfig().setMinPauseBetweenCheckpoints(3000L);
        // 2.4 设置任务关闭的时候保留最后一次 CK 数据
        env.getCheckpointConfig().enableExternalizedCheckpoints(
                CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
        // 2.5 指定从 CK 自动重启策略
        env.setRestartStrategy(RestartStrategies.failureRateRestart(
                3, Time.days(1L), Time.minutes(1L)
        ));
        // 2.6 设置状态后端
        env.setStateBackend(new HashMapStateBackend());
        env.getCheckpointConfig().setCheckpointStorage(
                "hdfs://hadoop102:8020/flinkCDC"
        );
        // 2.7 设置访问HDFS的用户名
        System.setProperty("HADOOP_USER_NAME", "jack");
        // 使用flinkcdc构建mysql数据源
        MySqlSource<String> mySqlSource = MySqlSource.<String>builder()
                .hostname("hadoop104")
                .port(3307)
                .username("root")
                .password("root")
                .databaseList("test")
                .tableList("test.t_user")
                .startupOptions(StartupOptions.initial())
                .deserializer(new JsonDebeziumDeserializationSchema())
                .build();
        // 读取数据
        env.fromSource(mySqlSource, WatermarkStrategy.noWatermarks(), "mysql-source")
                .print();
        env.execute();
    }
}

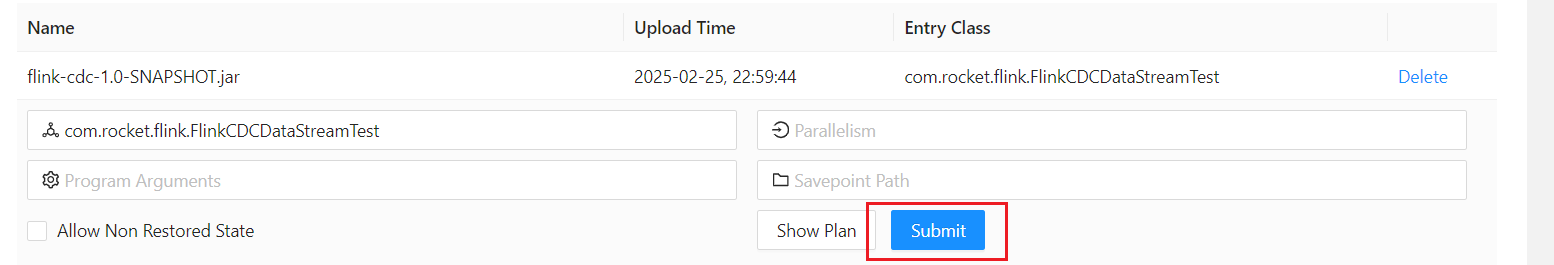

点击maven命令：clean package，上传到FLink的UI界面上：

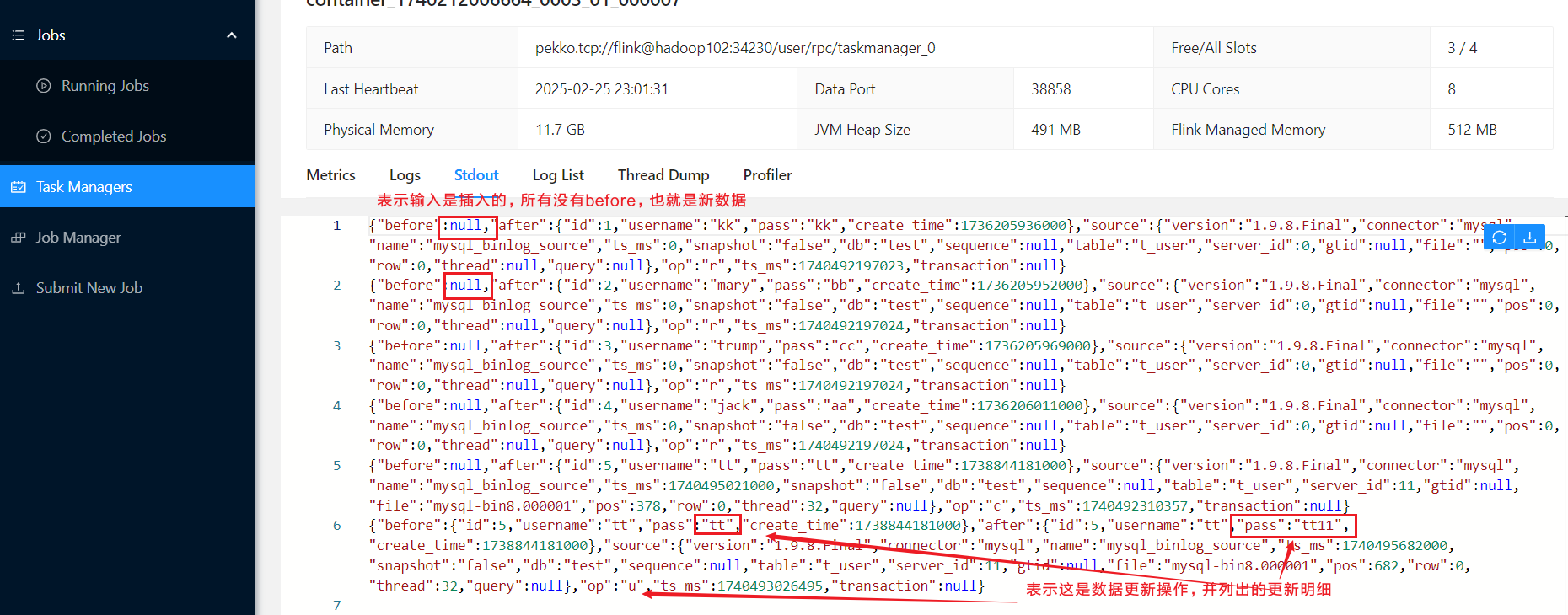

Alt text 运行后查看日志：
Alt text
